COBARON

Mechanical combination air filter device for applications with emulsion mist.

The COBARON series has been developed in its purely mechanical form for applications with emulsion. For border line cases such as for example, cast iron with smoke, the COBARON filter system is available with an electrostatic filter cell and can hence be economically employed as a combination filter system.

Machine tool machines have very high rotational speeds and therefore are characterised by high metal cutting performances. The COBARON system and its different variations, from a purely mechanical filter device to a combination filter device with mechanical pre-filter and an electrostatic filter as main filter, covers a wide range of problems and can be economically implemented where conventional filter systems fail (for example cast iron with smoke).

The COBARON filter system offers different filter combinations and can hence be individually configured to the application in question. The combination between proven filter principles for the right application increases the efficiencies of your filter device and the length of the service intervals. You have the option to choose the exact filter combination for your application.

The COBARON combination filter system is available as standard with our newly developed digital filter control system ISI -TRONIC.

Your advantages at a glance:

Available in 15 different variations
ISI-TRONIC as standard
Electronically controlled EC fan as standard
Air volume and speed control able
Diverse filter configuration
High quality filter media in pre and main filter area
Separation efficiencies of up to 99,95% (with HEPA filter)
Wide range of assembly and connection equipment
Easily adapted to the application in question
Optimum service intervals
Quality Made in Germany

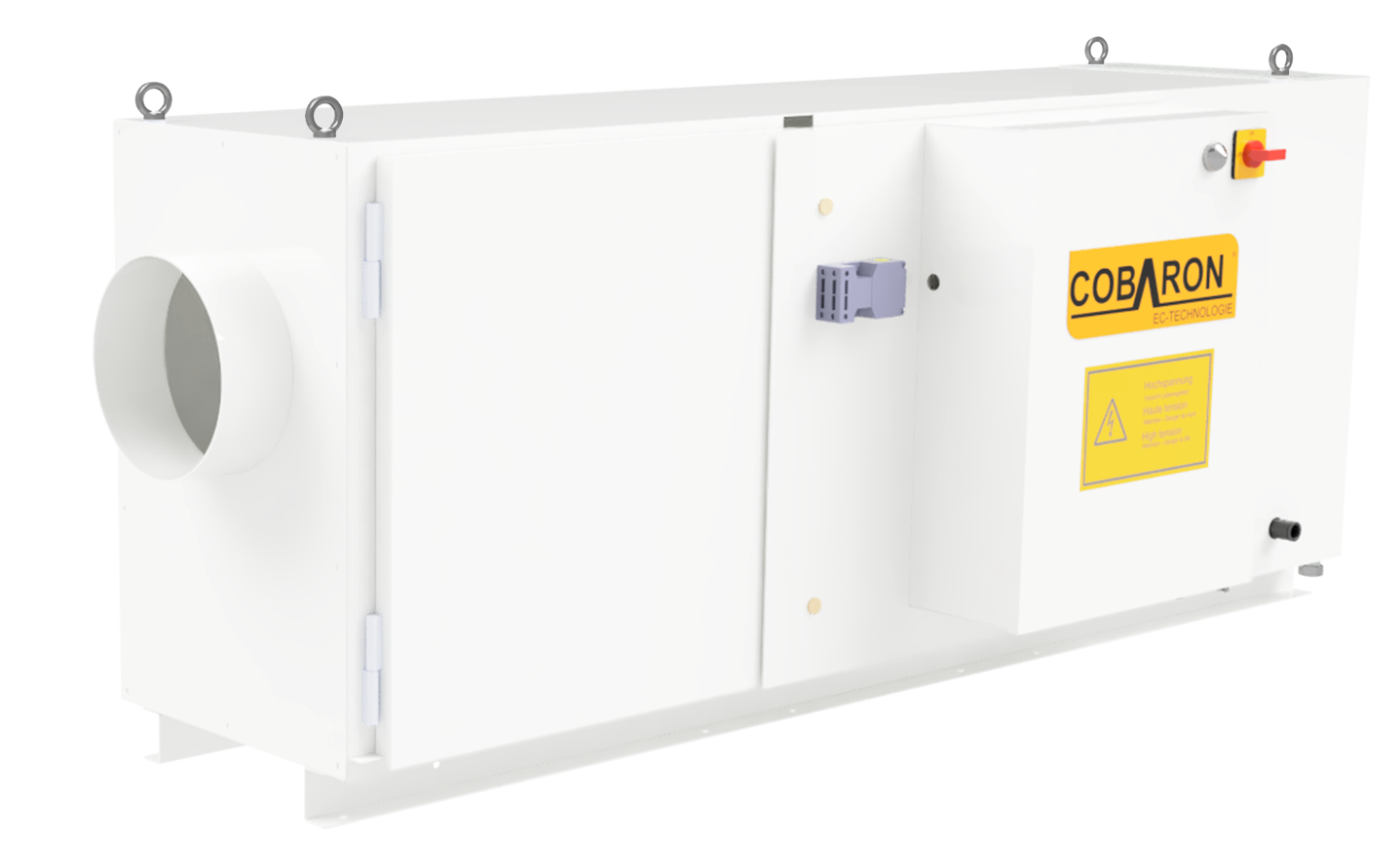

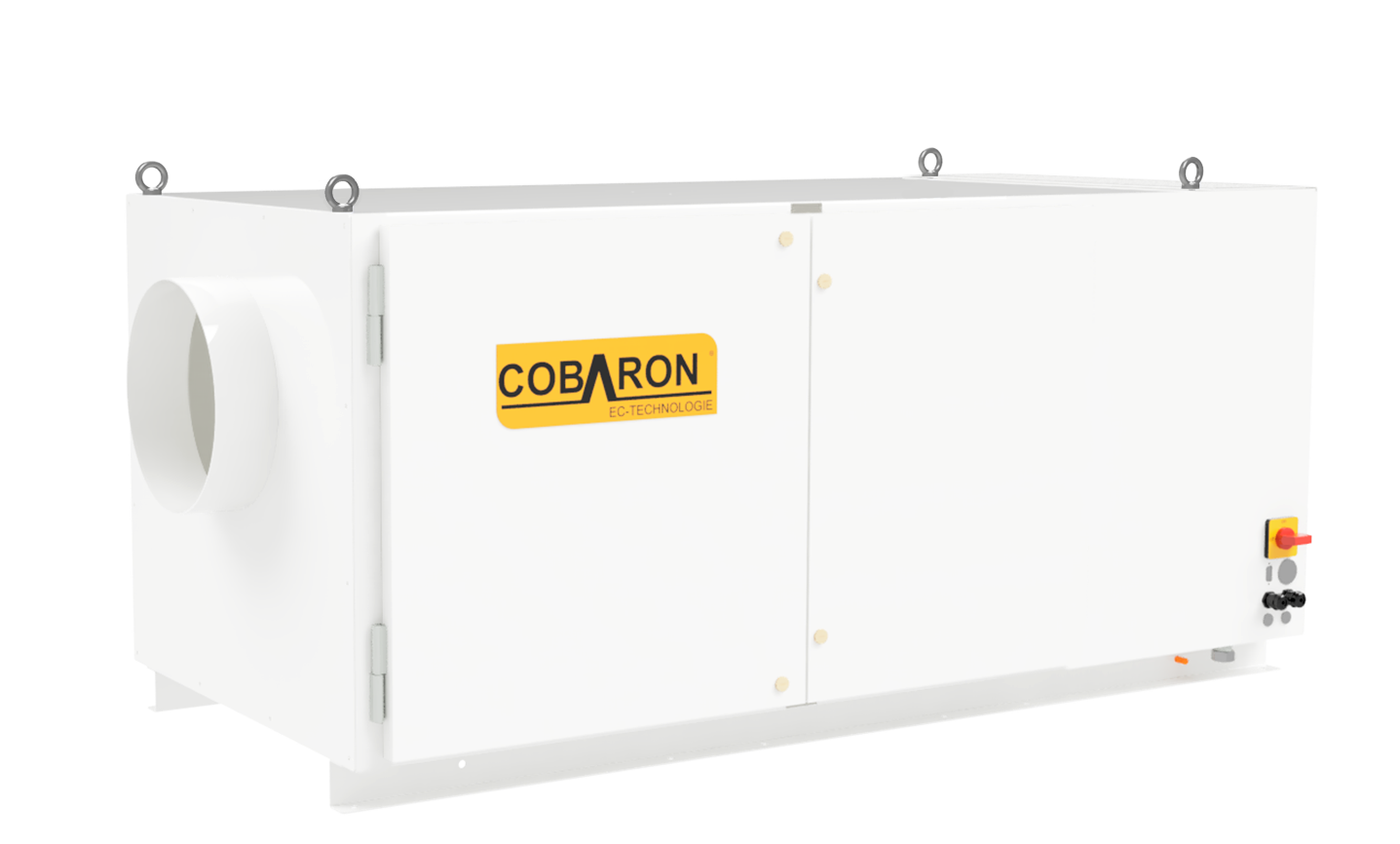

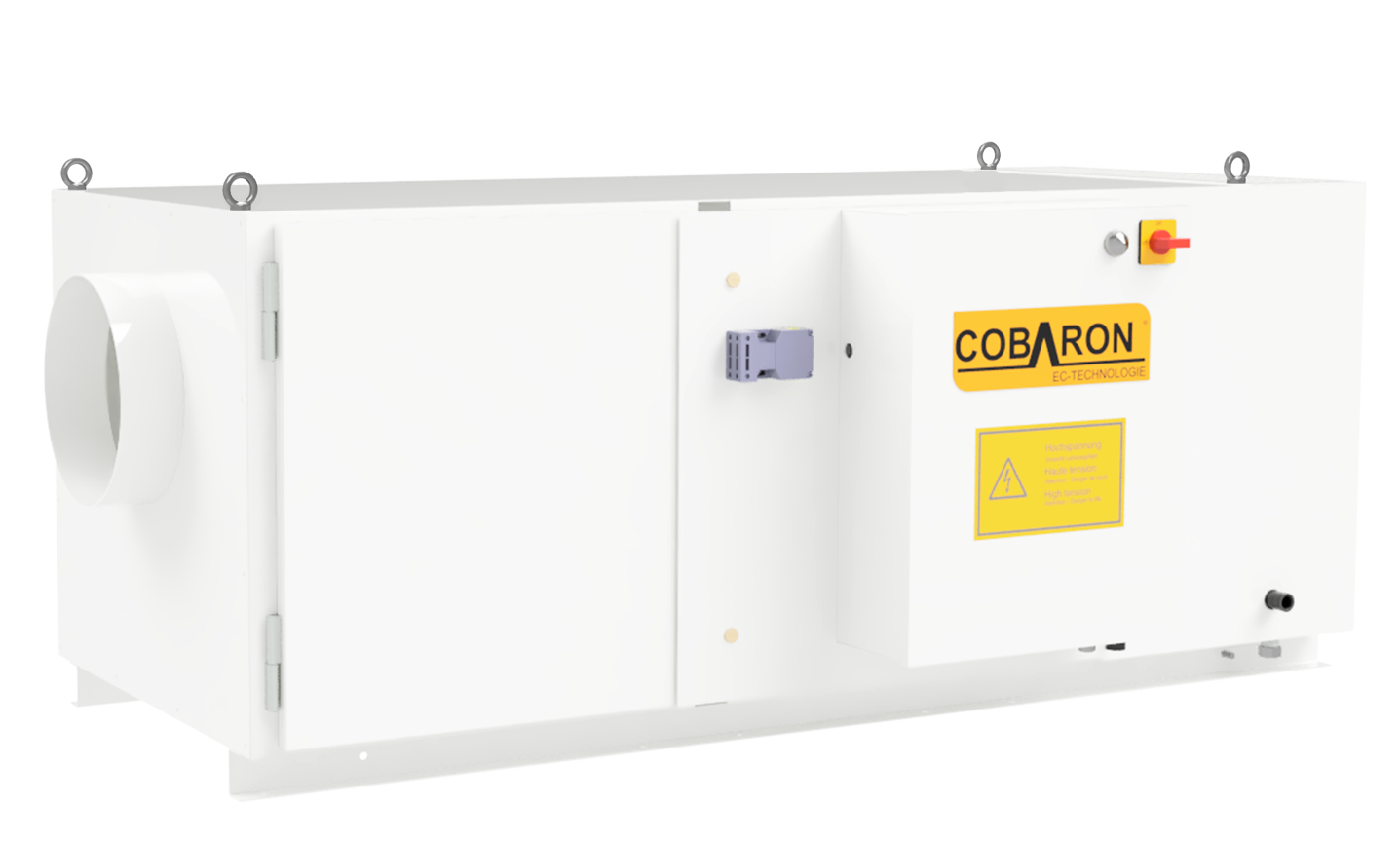

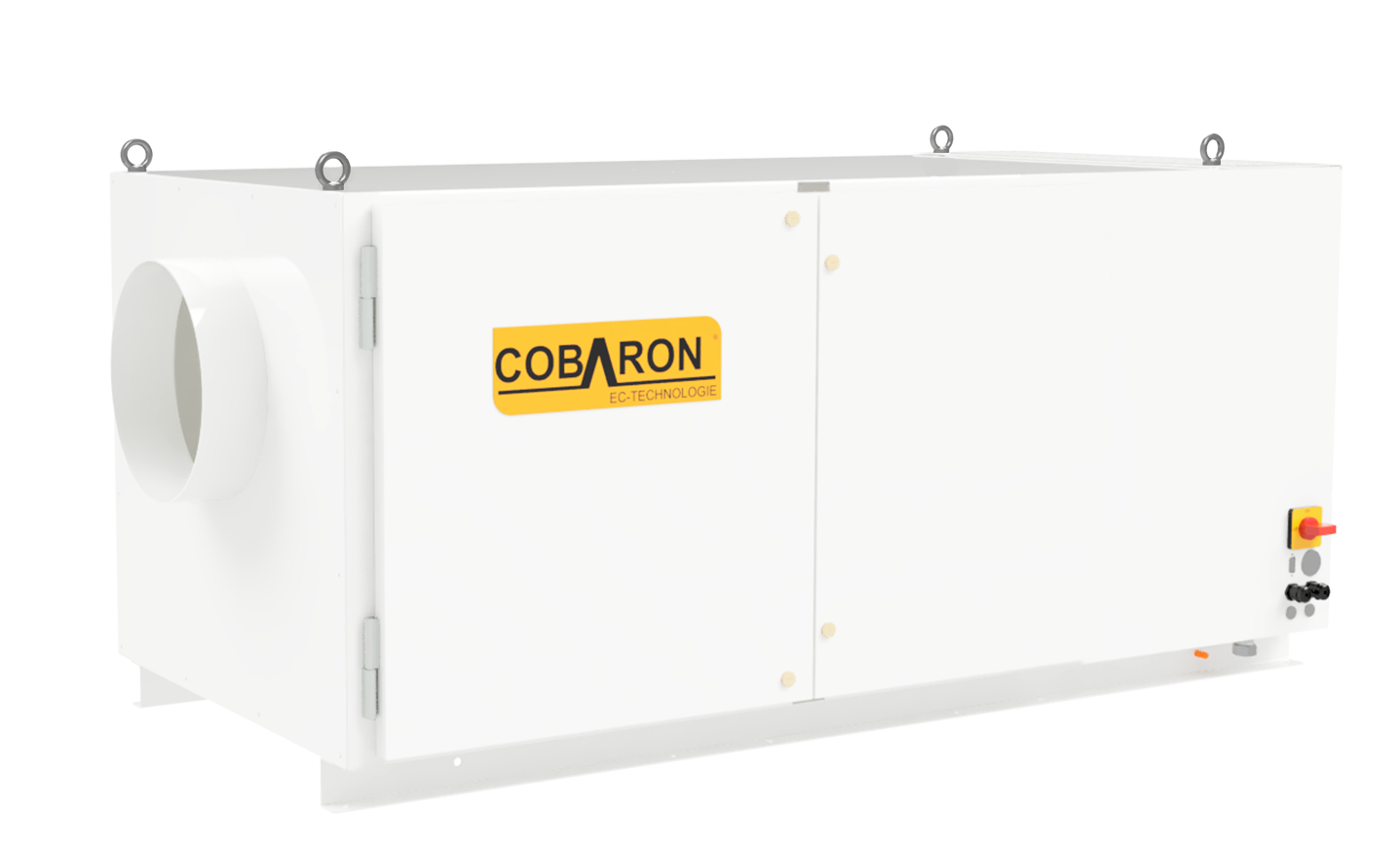

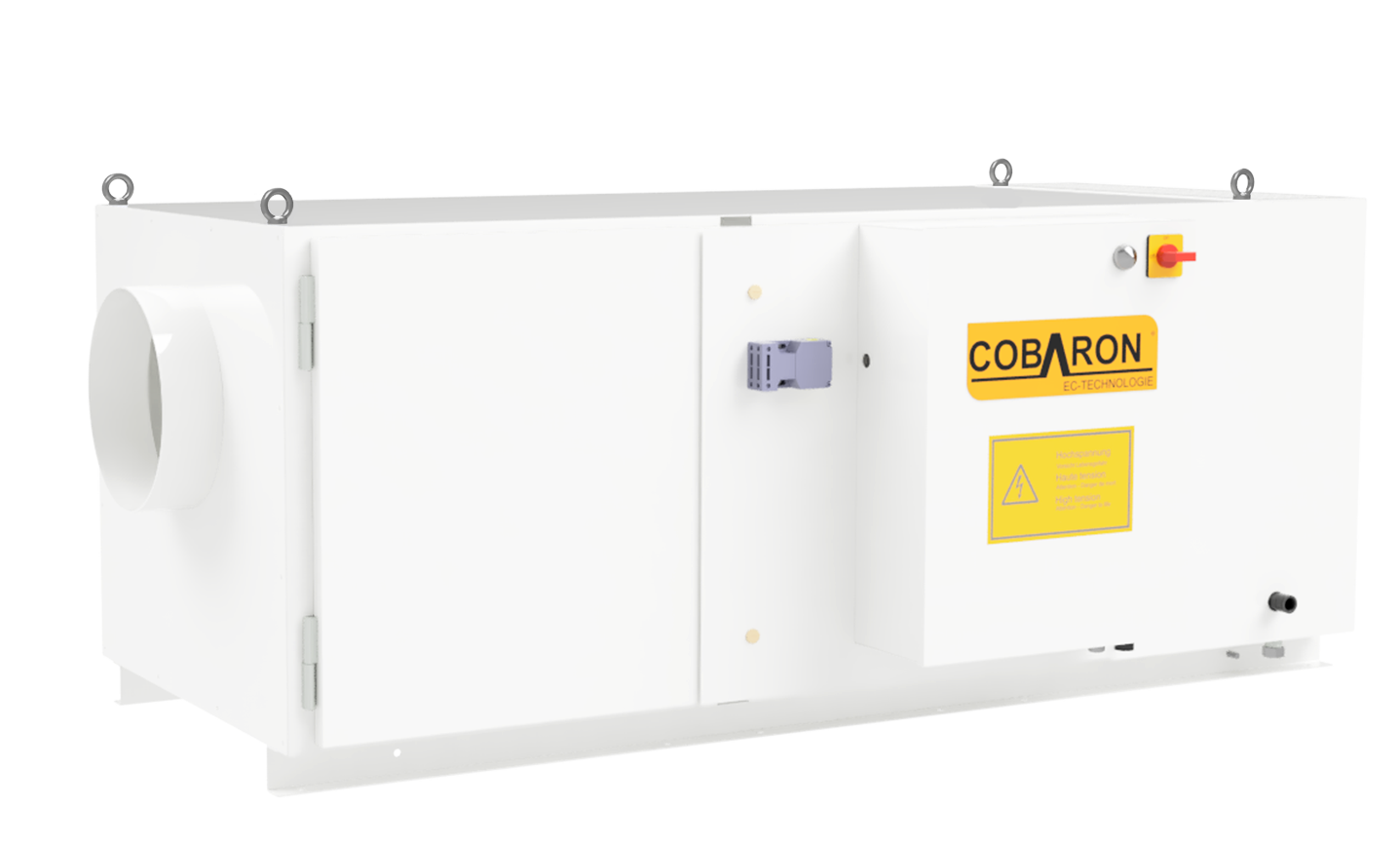

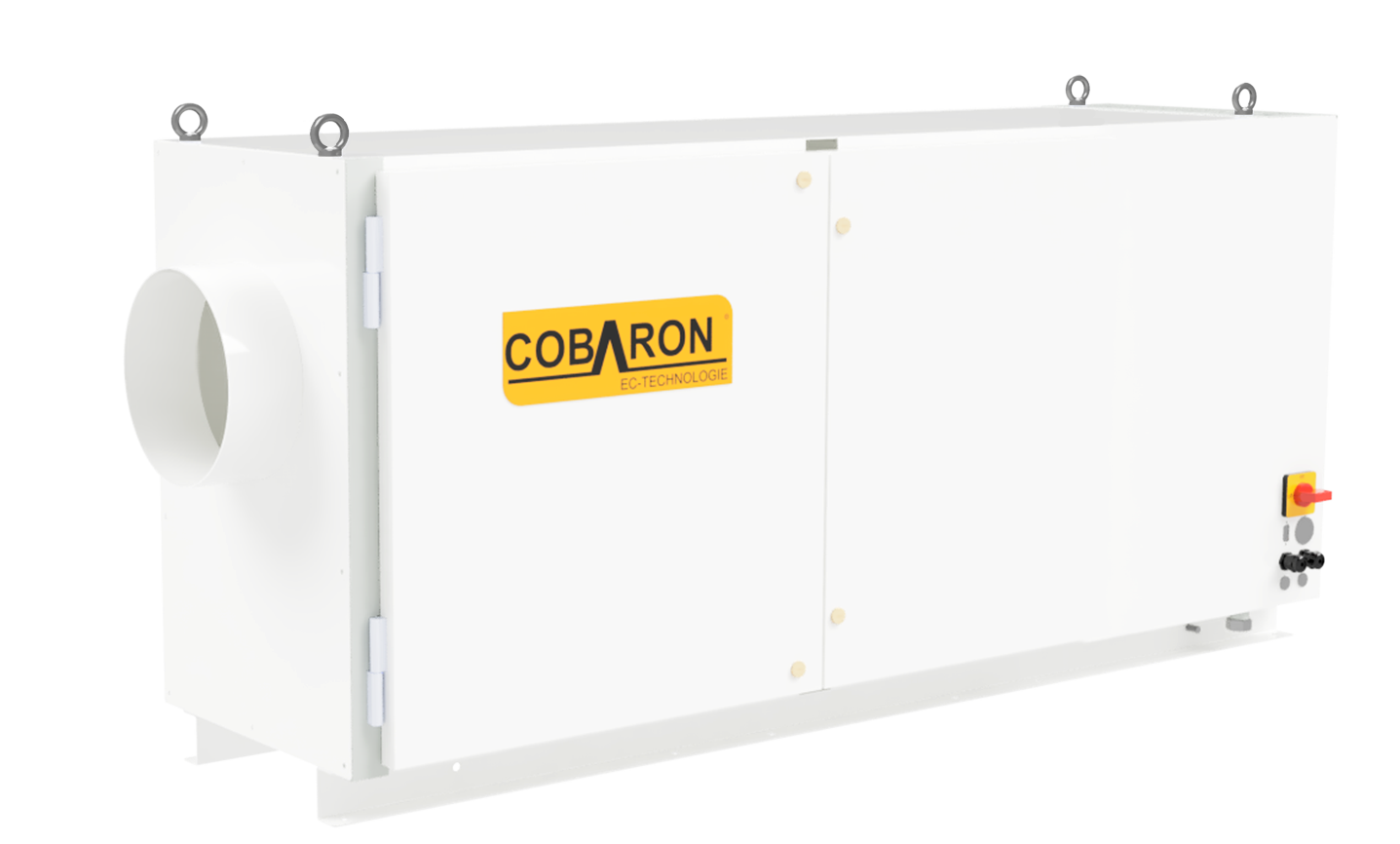

Device Type COBARON	COB 11TR \| 12TR \| 13TR	COB 16TR \| 17TR	COB 21TR \| 22TR \| 23TR	COB 26TR \| 27TR	COB 31TR \| 32TR\| 33TR	COB 36TR \| 37TR
Suction performance m³/h at inlet*	980	980	2050	2050	2420	2420
Total power consumption / Motor performance (kW)*	0,71	0,71	1,04	1,01	1,84	1,80
Operating voltage (other voltage available on request)	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE
Noise level (db(A))*	68	68	69	69	72	72
Dimensions L/W/H	L 1290 / B 345 / H 595	L 1450 / B 345 / H 595	L 1290 / B 588 / H 595	L 1450 / B 588 / H 595	L 1290 / B 588 / H 595	L 1450 / B 588 / H 595
Weight	74 / 74 / 79 kg	105 kg	106 / 106 / 113 kg	135 kg	111 / 111 / 118 kg	140 kg
Colours (other colours available on request)	RAL 7035	RAL 7035	RAL 7035	RAL 7035	RAL 7035	RAL 7035
