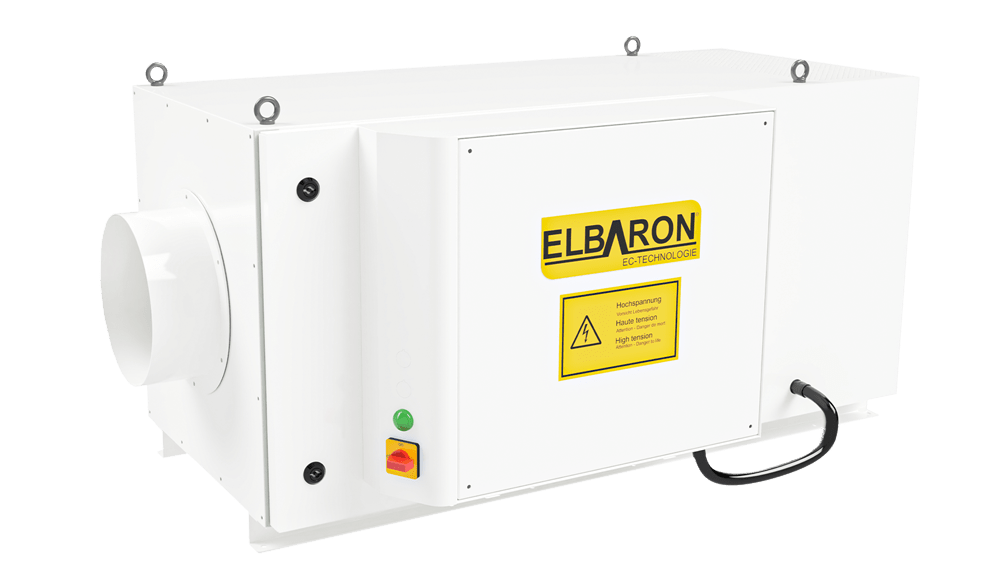

ELBARON

Electrostatic air filter device for oil mist and emulsion mist.

The ELBARON® electrostatic device series encompasses in total 18 different devices and can be optimally adapted to your application in terms of size and performance. ELBARON® devices win over due to their long service intervals and their functional reliability.

Modern machine tools are often characterised by high working speeds and tools with internal cooling. Very often processes use pure oil or emulsion with a high percentage of oil. The interaction between high speeds and oil as a coolant often leads to the production of smoke. In this case we recommend the use of an electrostatic filter device.

We developed the ELBARON® range for metal working with pure oil to extract oil mist and oil smoke. The high precision Ionisator /Collector cells especially manufactured by us in combination with the extremely efficient high voltage transformer and many other well thought out ideas, have resulted in one of the most efficient electrostatic filter systems on the market.

Our filter cell is constructed so that through its special construction the best possible filter efficiencies, service intervals and spark minimisation can be achieved.

ELBARON® devices are available as standard with our newly developed digital filter device control system ISI-TRONIC.

Advantages at a glance:

Available in 18 different device variations
ISI-TRONIC as standard
Electronically controlled, high efficient EC driven fans as standard
Speed and air volume controllable
Available as simplex (one cell) or duplex (2 cell) variations
Available with a variety of air volume performance options
Adaptable to pollutant levels and air power requirements
Wide range of assembly and connection equipment
Quality made in Germany

Device Type ELBARON®	RON 60 STR	RON 60 D1TR \| D2TR	RON 100 STR	RON 100 D1TR \| RON 100 D2 TR	RON 2 STR	RON 2 D1TR \| RON 2 D2TR
Suction performance m³/h at inlet *	350	350	730	730	frei 1650 ( Ø150 1130 / Ø200 1420 / Ø250 1550)
Total power consumption (kW)*	0,09	0,105	0,11	0,14	0,57	0,57
Operating voltage (other voltage available on request)	230 V, 50/60 Hz, 1PH + N + PE	230 V, 50/60 Hz, 1PH + N + PE	230 V, 50/60 Hz, 1PH + N + PE	230 V, 50/60 Hz, 1PH + N + PE	230 V, 50/60 Hz, 3Ph+PE	230 V, 50/60 Hz, 3Ph+PE
Noise level (db(A))*	52	52	54	54	73	73
Dimensions L/W/H	L 329 / B 374 / H 510	L 329 / B 374 / H 703	L 353 / B 542 / H 540	L 353 / B 542 / H 726	L 755 / B 345 / H 595	L 940 / B 345 / H 595
Weight	25 kg	30 / 35 kg	45 kg	54 / 63 kg	60 kg	65 / 74 kg
Colours (other colours available on request)	RAL 7035	RAL 7035	RAL 7035	RAL 7035	RAL 7035	RAL 7035

Device Type ELBARON	RON 3 STR	RON 3 D1TR \| RON 3 D2TR	RON 4 STR	RON 4 D1TR \| RON 4 D2TR	RON 5 STR \| RON 5 D1TR \| RON 5 D2TR
Suction performance m³/h at inlet*	frei 2110 ( Ø150 1060 / Ø200 1520 / Ø250 1770 / Ø300 1920)		frei 2500 (Ø 150 1230 / Ø 200 1700 / Ø 250 1960 / Ø 300 2160)		frei 3550 ( Ø350 3200 )
Total power consumption (kW)*	0,69	0,69	0,70	0,70	0,88 / 1,14
Operating voltage (other voltage available on request)	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE	400 V, 50/60 Hz, 3Ph+PE
Noise level (db(A))*	71	71	72	72	73
Dimensions L/W/H	L 855 / B 508 / H 595	L 1040 / B 508 / H 595	L 855 / B 508 / H 595	L 1040 / B 508 / H 595	L 1283 / B 1020 / H 595
Weight	74 kg	80 / 92 kg	78 kg	86 / 98 kg	170 / 171 / 195 kg
Colours (other colours available on request)	RAL 7035	RAL 7035	RAL 7035	RAL 7035	RAL 7035
