Chiron machining centers with serial number 08 have met the main requirements of modern industry from the very beginning, and they continue to embody these features even in this compact form. Older machines are characterized by sustainable high productivity, exceptional precision, small footprint, simple and quick setup, a clear and intuitive control panel, dynamic movements, and a modular design, offering the user a wide range of configuration options.
| Controller Manufacturer | FANUC |
| Controller version number | 21MB/210MB |
| Tool Holding | HSK 32 Tool Holders (Collet Type) |
| Number of Tools | 12 pcs. |
| Maximum Spindle Power | 8 kW |
| Spindle Speed, Max. (1/min) | 10500 1/min |
| Working Envelope | 300 (X) x 250 (Y ) x 250 (Z) |
| Weight | ~1820 kg |
| Power Supply | 200-560V/3~/PE/50/60Hz |
Small Size, Big Power

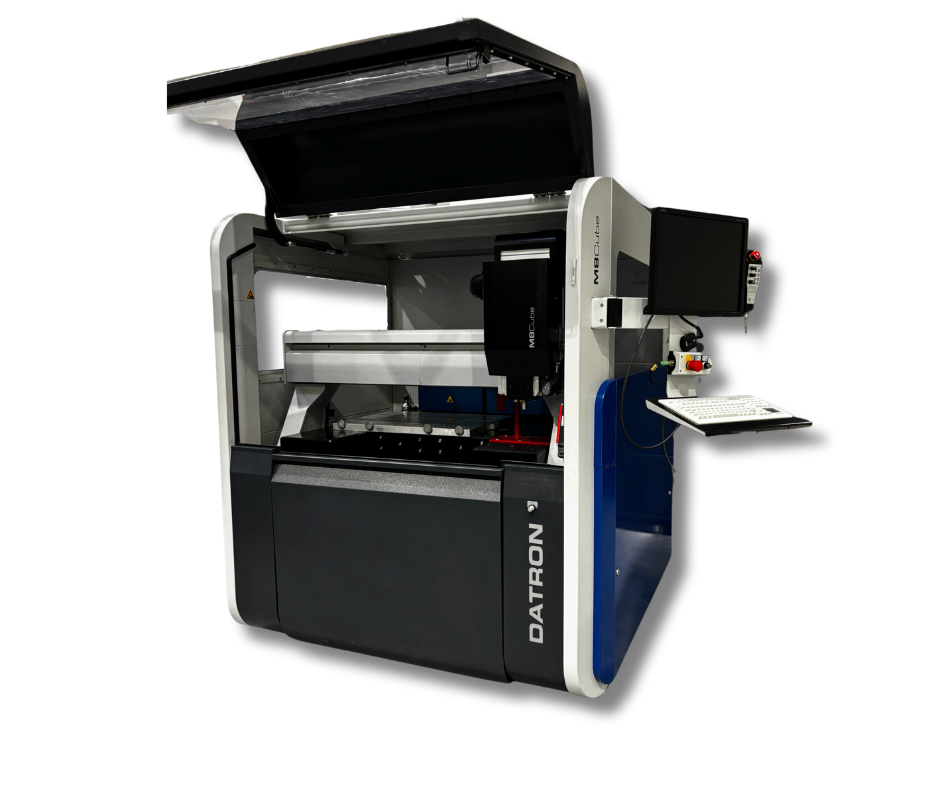

The DATRON neo is a compact, easy-to-use 3-axis milling machine that offers a wide range of possibilities. Flexibility, dynamics, performance, and quality — all packed into the smallest possible footprint.
Intelligent milling — that defines the DATRON neo. The entire machine, its user interface, and the software have been designed from the ground up to deliver the best possible user experience while ensuring outstanding milling results.
Our demo machine is a Series 2 model equipped with the latest NEXT control system, enhanced with a 4th axis, and fitted with almost every available software option.
For detailed specifications, please request our quote.
| Axis Travel | 520 mm x 420 mm x 220 mm |
| Working Envelope | 500 mm x 400 mm x 175 mm |
| Main spindle type | High-Frequency Spindle, up to 40,000 rpm (2 kW – direct tool holder clamping) |
| Tool holder | With Tool Holder and Integrated Tool Length Probe |
| Controller/sotware | DATRON Next |
| Control Panel | 24” Multi-Touch Screen |
| MQL-system | 5-Liter Coolant Tank (Ethanol-Based Cooling and Lubrication System) |
| Installation Dimensions without Operating Terminal (W × D × H) | 805 mm x 1450 mm x 1900 mm |
| Weight | Ca. 740 kg |
